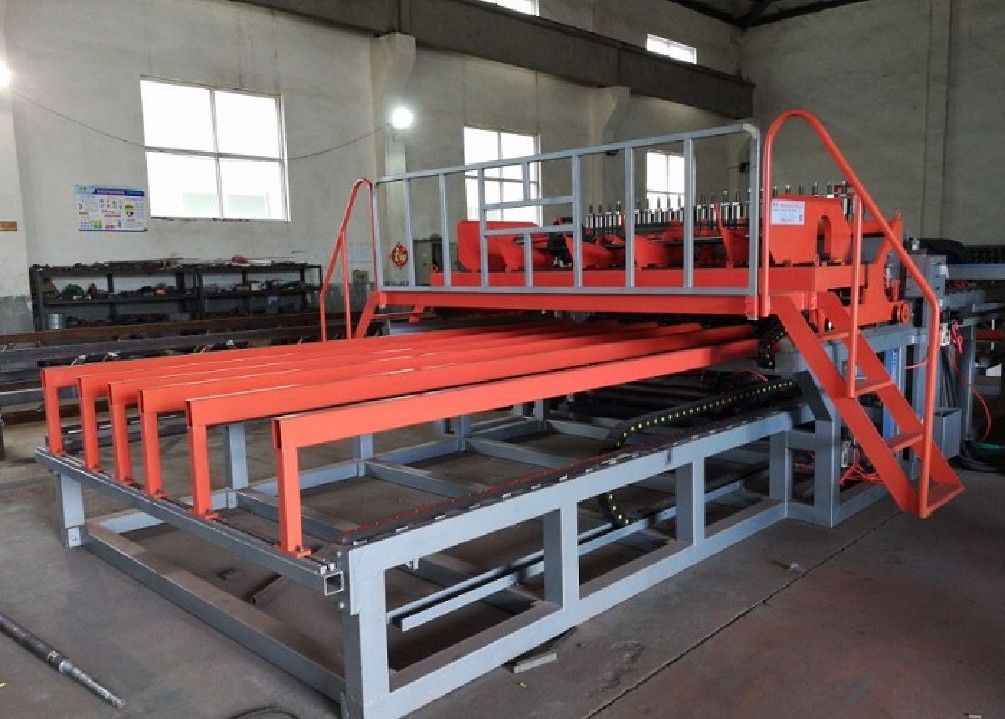

Siemens PLC Automatic Welding Mesh Machine For Reinforcement Wall
Product description
1. The Automatic welding mesh machine control system adopts synchronous CNC technology, Siemens PLC program and HMI. The machine operation is more intelligent and reasonable.
2. Control cabinet adopt touch screen operate system, you can change welding time and mesh opening size through touch screen. And has language in English.
3. The cross wires are fed from the hopper device automatically and is controlled by step motor. The hopper device has more capacity can load max 1.5tons rebar.
4. Adjustable distance of line wire that allows different opening size between the line wire, when input the distance of cross wire to computer, any mesh opening can be reach. Welding aperture can adjust randomly within range.
5. The main engine adopts imported and famous pneumatic components, making the service life long.
6. The welding wire is accurate and the welding points are firm for the big pressure.
7. Mesh drawing system is controlled by Panasonic servo-motor that adopts elastic tension and opening positioning mesh, which improves the precision of mesh opening size.

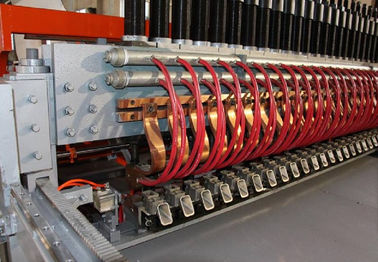

8,The automatic welding mesh machine equips with 13 pieces of typical and efficient water-cooling transformers, 160KVA*13(26 pcs of water cooling electrodes) ——every two welding heads need a water cooling transformer.
9, Wire feeding way:The longitudinal wires and cross wires should be pre-straightened and pre-cut. The longitudinal wires should be inserted into the slot tunnel by manual work or inserted into the wire feeding car first, then send by Panasonic servo motor.
10, Material:Suitable for low carbon iron wire, deformed bar, round bar black annealed wire or galvanized (cold galvanized, hot galvanized) processing.
Technical parameters:
| Wire diameter | 5--12mm | Line wire form | pre-cut wire |
| Weft wire space |
100mm--300mm (adjustable) |
Weft wire form | pre-cut wire |
| Line wire space |
100mm--300mm (adjustable) |
Rated voltage | 380V/50HZ (customized) |
| Mesh width | Max 2500mm | Water cooling Transformer | 160KVA X 13PCS |
| Welding speed | 40-- 60times/min | Overall dimension | 12X 3.7X 2.2M |
| Welding spot heads. | 26 | Max. mesh length | 12m |
| Total weight | 8.9T | Motor | 11 KW |
| Capacity | 270--300m per hour | Dimension of workshop |
35mx6mx4m (length*width*height) |
Application
The automatic welding mesh machine produce the concrete reinforced mesh panel is widely used in wall, roof, bridge consytuction. highway etc.
