| Pulling Mesh: | By Servo Motor | Motor: | 11KW |
|---|---|---|---|
| Width Of Mesh: | Max 3000mm | Mesh Opening: | 100x100 Mm--300x300 Mm(adjustable) |
| Electrodes: | 30PCS | Shape Of Electrodes: | Square |
| Highlight: | automatic steel bar cutting machine,rebar straightening cutting machine |
||

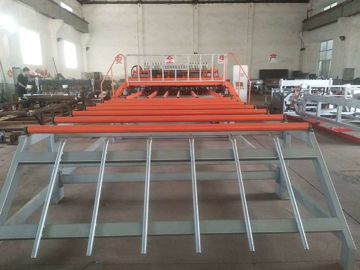

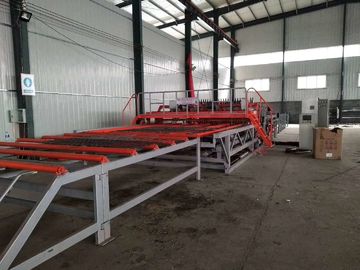

Width 3000mm Automatic Reinforced Wire Mesh Welding Machine For 5--12mm Rebar
Product descroption
1.This kind machine is our latest developed reinforcing mesh welding machine .
2.The machine adopts panasonnic PLC program .The input front-panel is touch screen. The operation is more intelligence and reasonable .
3.The drawing mesh part is controlled by panasonnic servo motor .You can adjust the cross wire space randomly within range 50-300mm one same mesh sheet .
4.The longitude wire and cross wire should be pre-straighted and pre-cut .
5.The machine mainly consiste of holding wire platform ,main welding part ,cross wire
hopper,ladder,drawing mesh part and bracket ect.
Technical parameter
| Wire diameter | 5mm-12mm | Longitude Wire Feeding | Pre-straightened &pre-cut |
| Longitude wire space | 100mm-300mm | Cross wire feeding | Pre-straightened &pre-cut |
| Cross wire space | 50mm-300mm | Rated electrical power | 160kva*15pcs |
| Width of mesh | max3000mm | Rated voltage | 3-phase,380v/220v/415v/440v 50hz or 60hz |
| Welding electrodes | 30pcs | Weight | 11T |
| Welding speed | 45-65times/min | Overall size | 14m*3.2m*2.3m |
Machine advantage
1. Panasonic (Japan) PLC program, Weinview (Taiwan) touch screen.
2. Multiple languages program can be elected to design on the screen. (English, Spanish etc)
3. Schneider (France) low-voltage apparatus.
4. Panasonic (Japan) servo motor for pulling mesh, big power, high precision.
5. Delta (Taiwan) variable-frequency drive.
6. Brake clutch motor and reducer connect the principal axis directly, high stability, big power.
7. Casting water-cooling transformers and water-cooling welding electrodes, high efficiency.
